Remote IO

Once I became full time remote last year I started wanting better video and audio for myself and others. It feels more professional and makes me feel more confident when on a virtual meeting.

Camera

I don’t recommend this setup yet 🙃 it is very fiddly. The power supply I have goes out randomly. I already had the camera so I talked myself into the rest of this over the past year.

I think having manual control over the white balance and aperture are the biggest wins for image quality on a web cam. Even if you have nice lights the webcams on computers (and most of the 3rd party ones I’ve seen) still auto white balance ruining your custom light color. Also I have crappy basement lights and I think the lens and white balance make up the difference.

Here are some webcam comparisons of my iMac Pro webcam vs my X-Pro2. There is very little natural light that makes it into this area so lighting is pretty consistent and can be controlled by the camera.

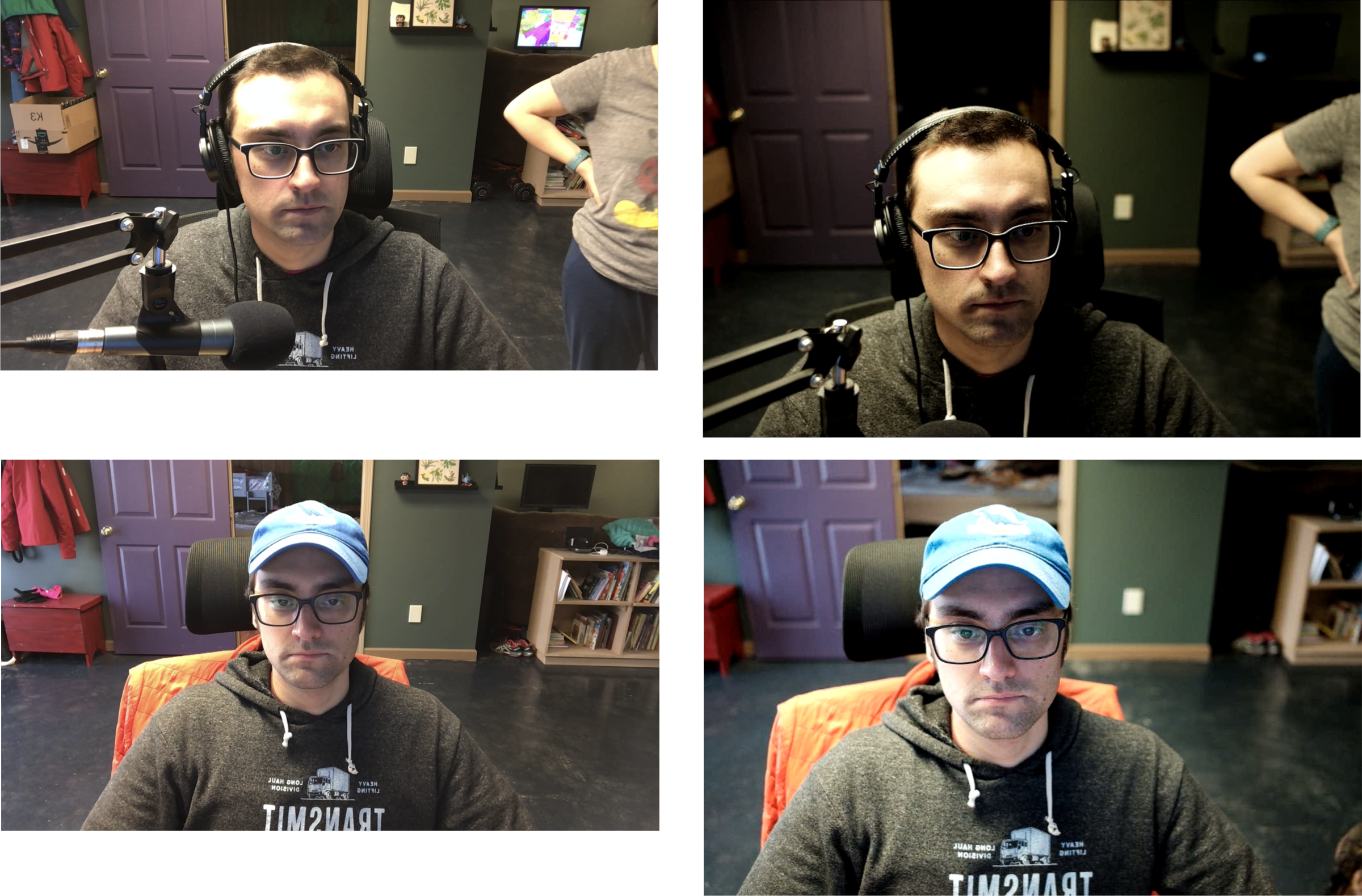

The iMac camera is on the left, X-Pro2 on the right.

iMacPro Webcam vs X-Pro2

The biggest win here is the depth of field and exposure. It can block out most of the background where my kids can randomly run in to frame.

Sony, Canon, Nikon, and Fujifilm all have software that let you mount SLR and mirrorless cameras as webcams now so if you have one of those around you may be close to a better webcam.

Note: If I was starting from scratch I would honestly look at a used SLR and used lens on eBay. Something that supports direct HDMI video output. And a lens ~35mm or slightly wider with an aperture f/2.0 or wider (f/1.8, f/1.4, f/1.2). The wider the aperture the less light you need and the blurrier the background gets.

I’ve also been wanting to look into using iPhone since that seems like it could be way easier but I haven’t tried yet.

I’ve listed exactly my setup below even though I would only recommend this if you already have my exact camera.

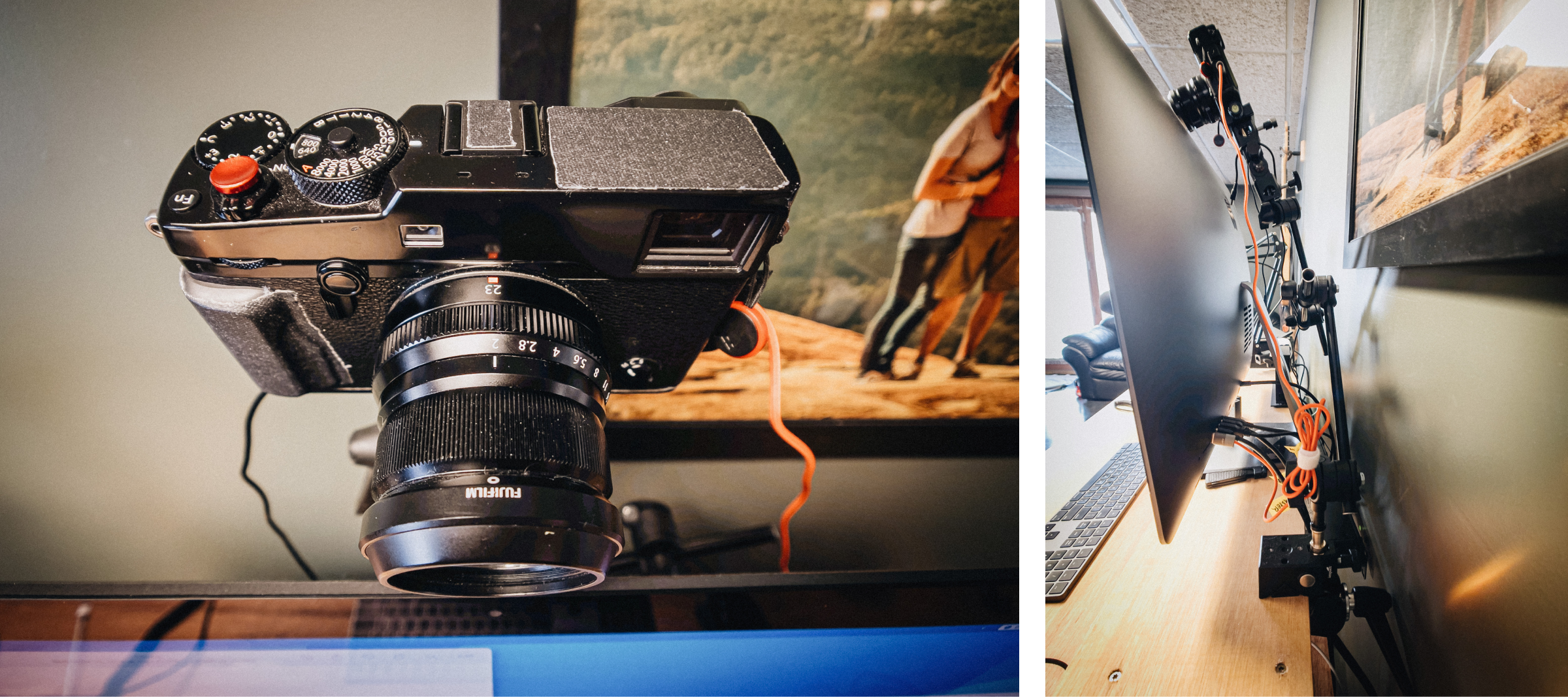

Fuji X-Pro2
Fuji 23 mm f/2 lens
Super Clamp
Manfrotto Articulated Arm
USB Cable
Camera Power Supply (do not recommend)
Tripod mount
Various studs to attach clamps to each other

Settings

ISO 640
White balance (4000k) matches the fluorescent bulbs
Aperture f/2.0
Shutter speed 60
Frame Rate 4k 2160 at 29.97fps

I try to have the shutter speed be ~ double the frame rate (not sure if this matters for webcam use, but that’s the rule for normal video work).

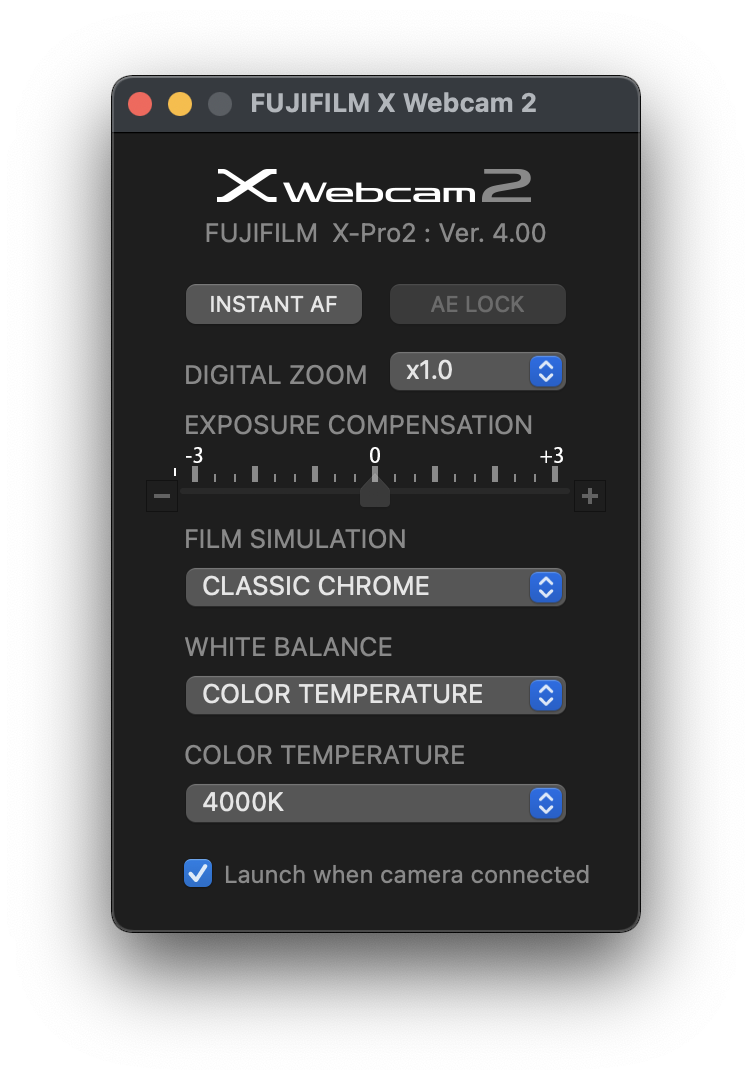

Fuji WebCam app

This provides the interface from the camera to the computer since my exact camera model doesn’t support direct HDMI capture. It also allows changing white balance in software.

Fujifilm webcam app UI

Light

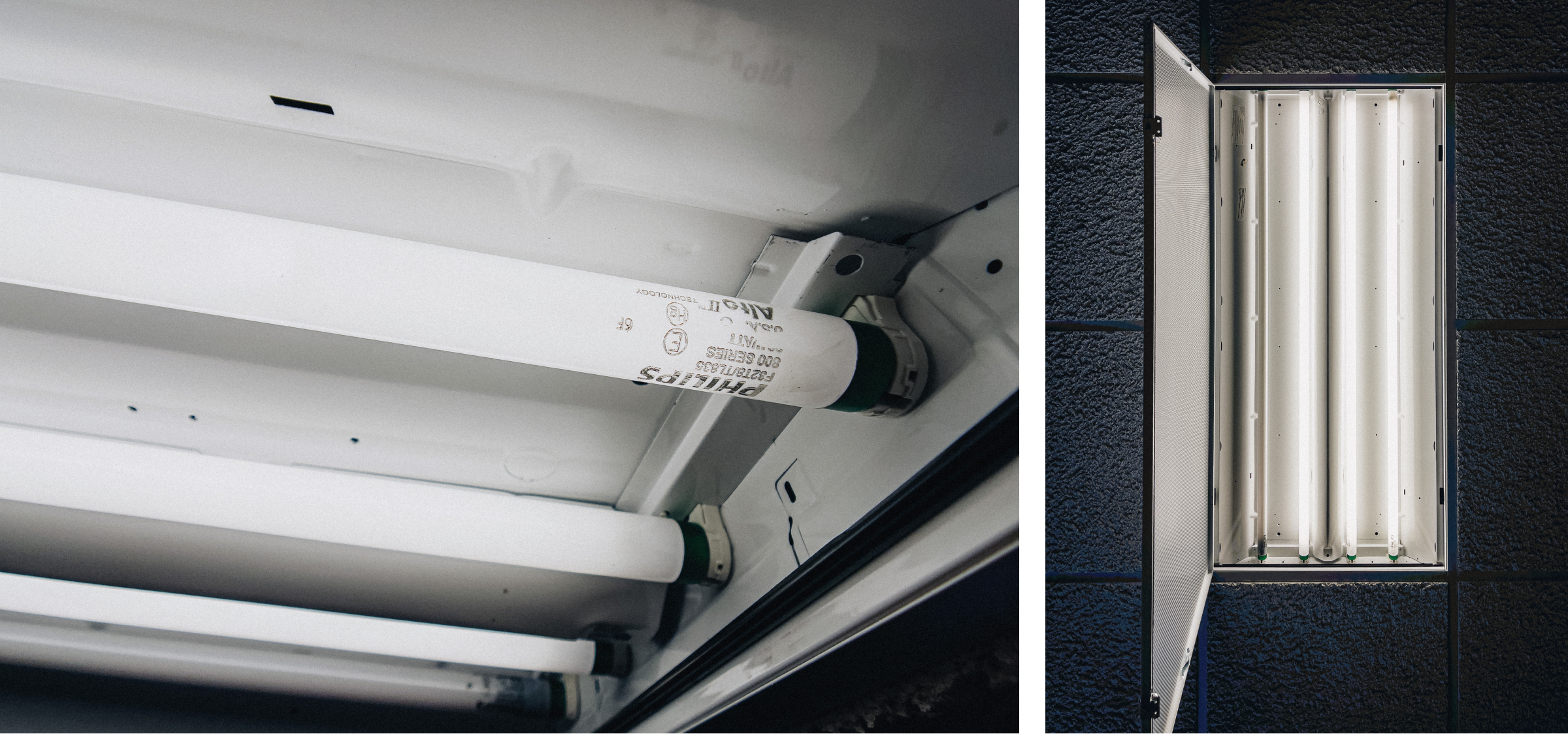

I basically just use my overhead light in my basement and tune the camera settings to match that light. I haven’t gone down the rabbit hole of custom lights since I would need a lot more rigging on my desktop.

Philips 281675 F32T8 Tl835 Plus Alto - Fluorescent Bulbs

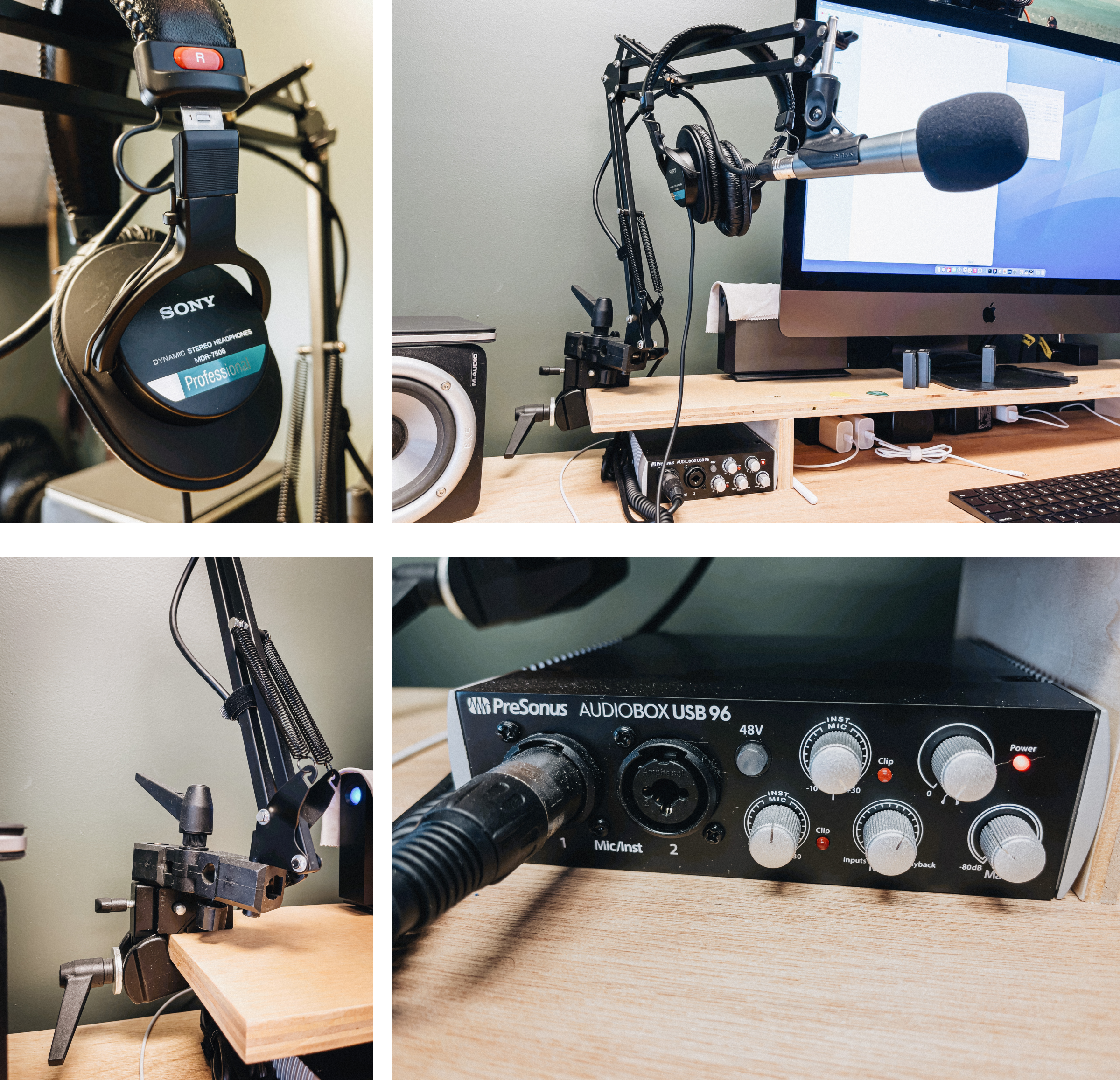

Audio

So far I’ve found that having a microphone as close to your mouth as you can stand has sounded the best. Also having headphones that don’t rely on bluetooth is a win for long calls where batteries tend to die. The audio interface I have now allows me to mix the mic and the computer audio so I can hear myself and have feedback on how I sound.

Software

This is not necessary but a very nice set of audio tools. I essentially use it to have a soundboard and route that audio into the same channel as my mic so I can play fart noises on calls to make teammates laugh.

To do this you need:

I think I bought the Podcast bundle.

Inspiration

Here are resources I used to find gear and ideas and setups like this:

FYI, there are no affiliate links or any money being made here. Sharing what I’ve come to at this point. If I ever make it big and get sponsored in some way I’ll remove this copy.
